Applications are associated with treatment of chronic muscular and tendon disorders etc.
Radial Shockwave Therapy is a non-invasive, low cost, unique and powerful solution for musculoskeletal pain. This radial shockwave therapy is frequently used in physiotherapy, orthopaedics and sports medicine. Applications are mostly associated with treatment of chronic muscular and tendon disorders, back and cervical pain. It results in faster pain relief and mobility restoration.
No surgery – No pain killers
VihaWAVE Shockwave Therapy is so effective that it removes the need for surgery and there is no need for pain killers. This makes it ideal to speed up recovery and cure indications causing acute or chronic pain.
How it works?
VihaWAVE shockwave therapy works on electromagnetic field principle. Electromagnets in the applicator accelerate a heavy projectile.
Principle
A heavy, electromagnetically accelerated, ballistic projectile transfers its kinetic energy to a transmitter head in the applicator. The kinetic energy is transformed into impact energy in the applicator head. Shockwaves result and spread out radially from the contact area into the desired treatment region of the body. The projectile hits the applicator and creates a unique radial wave which is penetrating the tissue.
Modern technology
VihaWAVE Shockwave therapy has user-friendly interface. It has large intuitive and clear LCD Display with colour Touch Screen Design.

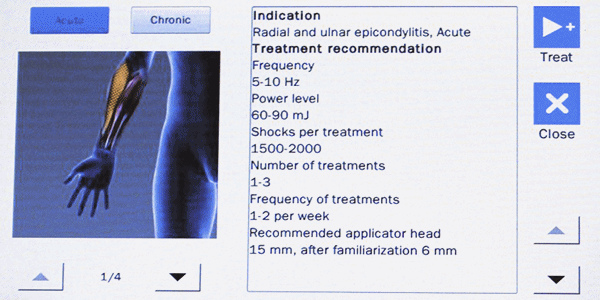

Treatment encyclopedia
With preset protocols:
Mobility
Complete system with require accessories fits into an easily carried aluminium case, making it portable.
Most common applications
- Insertion Tendinopathy
- Tendon problems
- Chronic inflammation
- Myofascial syndromes
- Status post Muscular Injury
- Trochanteric Bursitis
- Radial and Ulnar Epicondylitis
- Achillodynia
- Plantar Fasciltis
- Heel Spur
- Dupuytren’s Disease
- Thumb Basal joint Arthritis
Feature and benefits
- Ergonomically designed
- Ballistic high energy pulses
- Foot switch operation for ease of treatment
- Just three to five treatments at weekly intervals with sessions that lasts for about 10 minutes
- Energy – 60 to 185mJ (1-5 bar)
- Pulse Frequencies from 1 – 22 Hz
- Cost effective
- Fast and long lasting effect
Technical specifications
Technology
Compressor free ballistic radial shockwave therapy – system with electromagnetic generator as projectile accelerator
Power Levels/ Energy
Energy levels from 60 to 185 mJ adjustable precisely in steps of 10 mJ
Pulse Frequency
Frequencies from 1 to 22 Hz
Mode
1 Continuous Mode
3 Burst modes (4 / 8 / 12 pulses)
Adjustable Preset Programs
Memory Card Slot
SD-card slot available to store patient records
Dimensions
200 x 350 x 300 mm
Weight
3-4 kg (without applicator)
Shockwave Applicator
- Ergonomic design with inbuilt fan cooling
- Lifetime of minimum 2,000,000 shocks
- Maintenance only necessary when performance drops, not obligatory at a certain amount of shocks.
- Applicator heads Diameters of 6/ 15/ 25 mm
Power Consumption
250 VAC, 50-60 Hz.
Contact Details:
AVI Healthcare
25, Nanddeep Industrial Estate
Kondivita Lane, Andheri (East)
Mumbai – 400059
Tel: +91 22 28320452
Mob: +91 9322294345
Email: [email protected]
