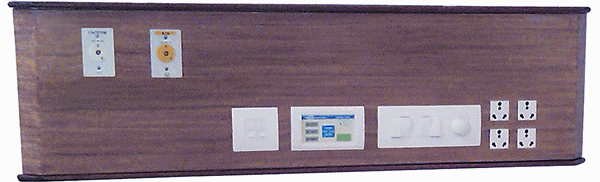

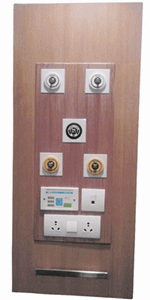

Wide range of bed-head panels for any application within hospitals
Medisystems bed-head panels are specially fabricated units for hospital use, designed to converge all the essential utilities around the patient’s bed. These bed-head panels are configured to carry user terminals for electrical power, illumination, communications, biosignals, data, medical gas and carry a medical rail with a range of mountable accessories like examination lamps, BP instrument holder, case sheet holders, IV and infusion pump stands, bowl holders and the like.
Medisystems circuit protected bed-head panels have now become part of ICU and patient room infrastructure in every hospital. Standard configuration panels are available for ICU, wards, private rooms/ suites. Custom configurations to closely meet user requirements are also available.
Medisystems bed-head panels are constructed from light weight extruded aluminium sheets and sections and from stainless steel. The aluminium is surface treated with epoxy-polyester powder coats in a seven stage process which ensures life time protection to the metal surface with ease of cleaning and ability to withstand damage from common hospital fluids like saline, drugs, blood etc. These light weight panels can also be mounted on non-brick walls made of siporex or gypsum board. All panels have safety metal partitions between high voltage, low voltage and medical gas outlets.
Medisystems manufactures a very wide range of such panels to meet practically every kind of need. Such panels are available in standardised as well as custom configurations which include horizontal, vertical, running length or wall angular orientation, in colours and finish of choice.

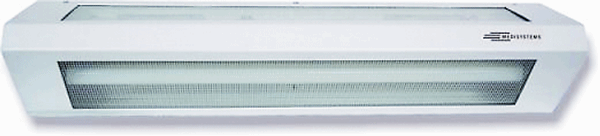

Medisystems patient bed lamps
Patient-bed lamps are designed to accompany Medisystems bed-head panels or can be purchased individually. Medisystems patient-bed lamps have carefully profiled mirror optic reflectors, to throw uniform light towards the bed areas for examination or reading purposes. They are available in two feet and three feet lengths and mounted at a height of 1.85 m on the wall behind the patient’s bed.
Patient bed lamps are made in light weight powder coated aluminium with glass diffusers and mirror optic reflectors. They come pre-fitted with uplighter, downlighter and LED night lamps. All lamps can operate independently. Made with energy efficient T5 FTL’s or LED tubes and electronic ballasts, they have long lamp life, low electricity consumption and are quick and easy to replace by hospital staff. Each lamp has a colour temperature of 6500 K cool daylight and is designed to give over 1150 lumens of uniform lighting adequate for bedside areas.
Medisystems medical rail and accessories
Medisystems also offers a range of medical rail mountable accessories. Each of these accessories is fixed on one or more sliders which can be smoothly moved on the rail and fixed at any desired location along the length of the rail. Medical rail accessories include case sheet holders, SS bowl for medicines , utility baskets, blood pressure instruments, IV poles, infusion pump stands, suction bottles, examination lamps and rail slider clamps for just about any mountable item.
With more than 75 installations in hospitals and nursing homes all over the India and overseas, Medisystems undertakes the design, assembly, factory test, supply, delivery, field testing and commissioning of bed-head panels in standardised as well as almost any type of custom configuration or finish to meet the requirement of every type of hospital.
